01Position the base

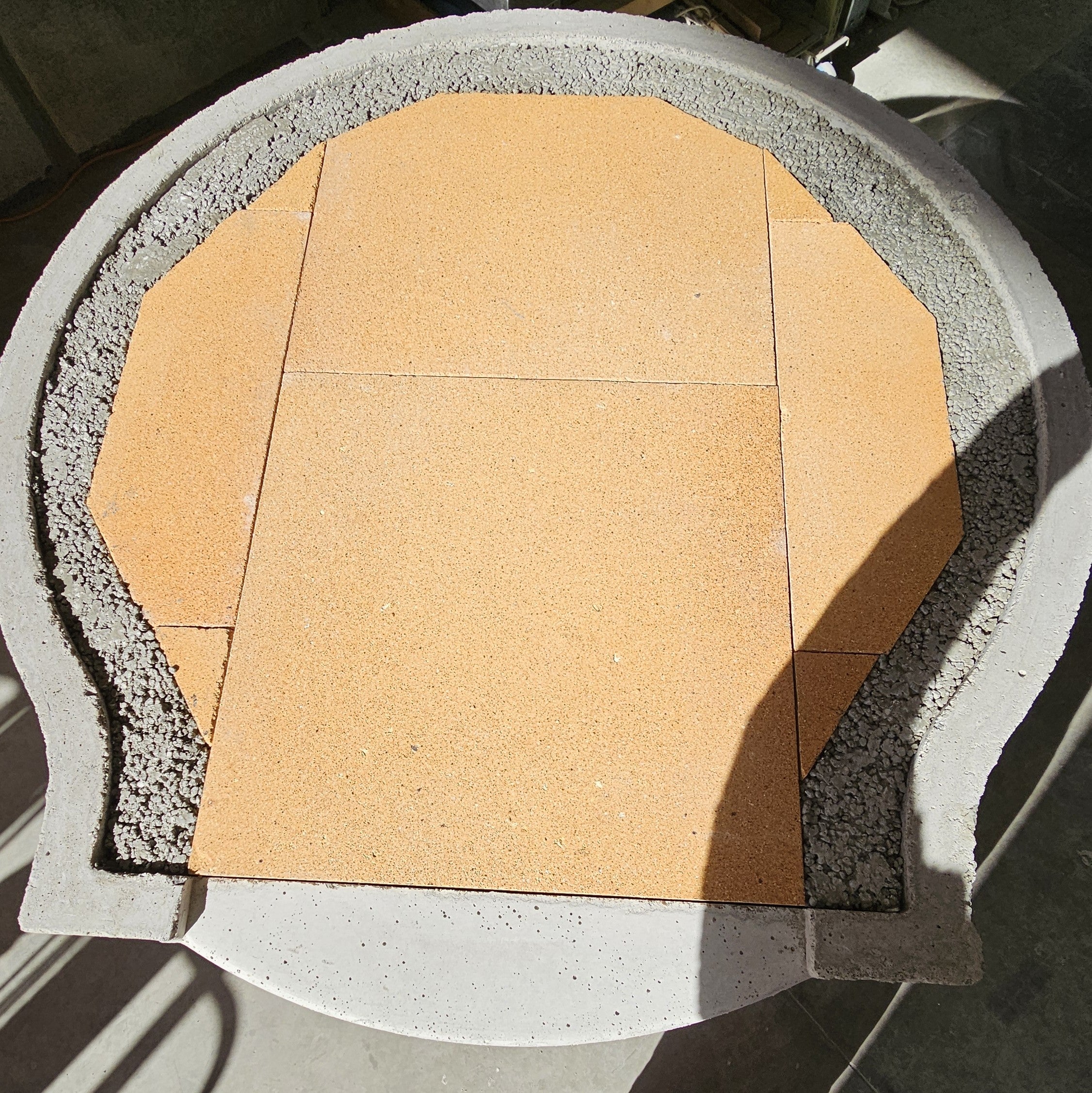

Set the purpose-built base in its permanent location and fit the cooking floor.
Why this kit is different
More of the oven is built before it reaches you.

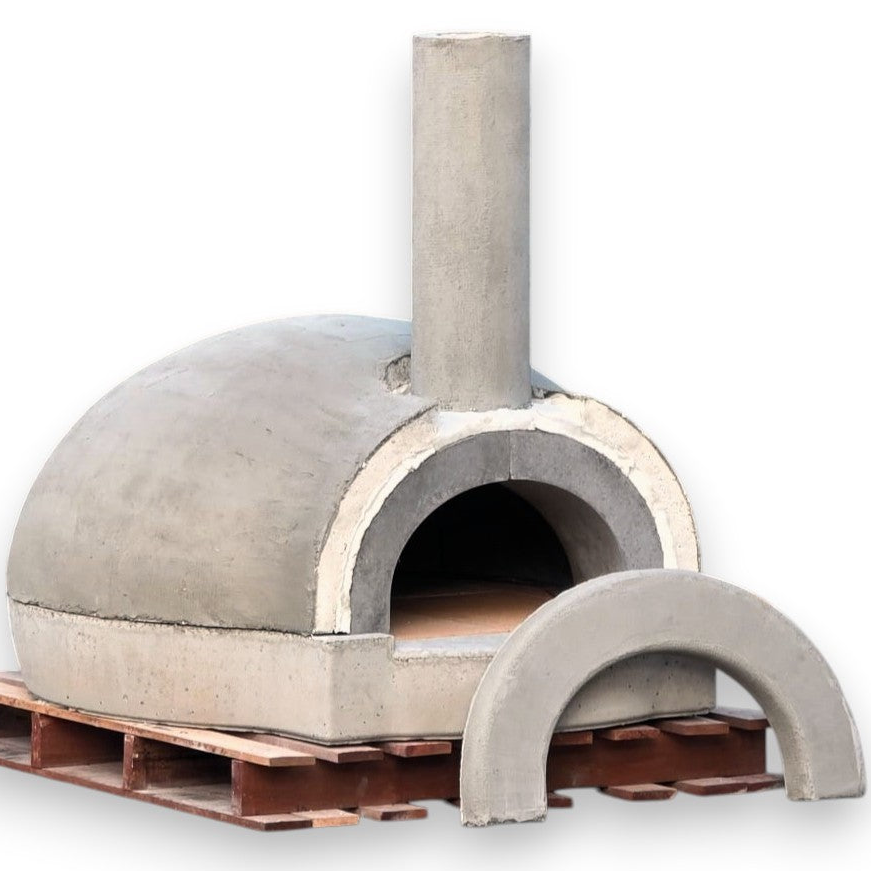

The core oven arrives as a set of purpose-built prefabricated components, so less of the structural and insulating work is left to be created on site. The animation shows how the system comes together.
Purpose-built baseStructural support, underfloor insulation and drainage are integrated into the oven system, so a full concrete benchtop under the oven is not required. You still need a stable supporting stand or frame.

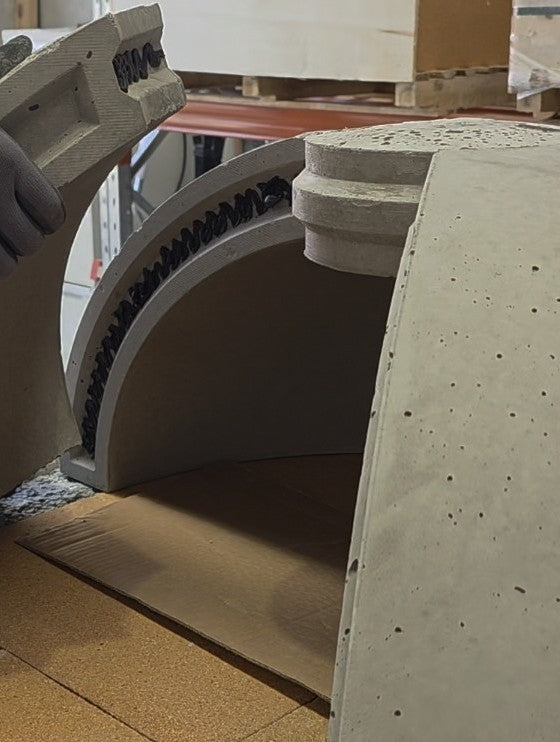

Six-piece refractory domePrefabricated sections mean there is no brick dome to construct.

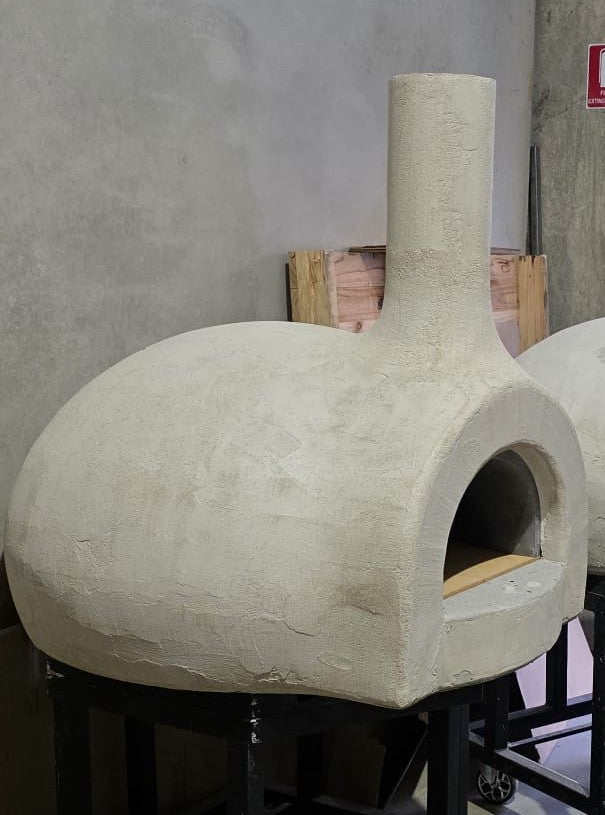

Pre-shaped outer shellAlready cast and reinforced, eliminating on-site forming, wire work and wet insulation work.
A complete core oven system
See exactly what is built into the oven.
The main oven structure, insulation and core assembly materials are supplied together. The cutaway shows the layers that are already designed into the system.
- 150 mm cooking floorEight refractory floor pieces.
- 280 mm refractory inner domeSix steel-fibre refractory sections.
- 325 mm ceramic fibre blanketInsulation around the hot inner dome.
- 450 mm insulating outer shellPre-shaped and reinforced before delivery.
- 5Insulated, drained base50 mm underfloor insulation with integrated drainage.

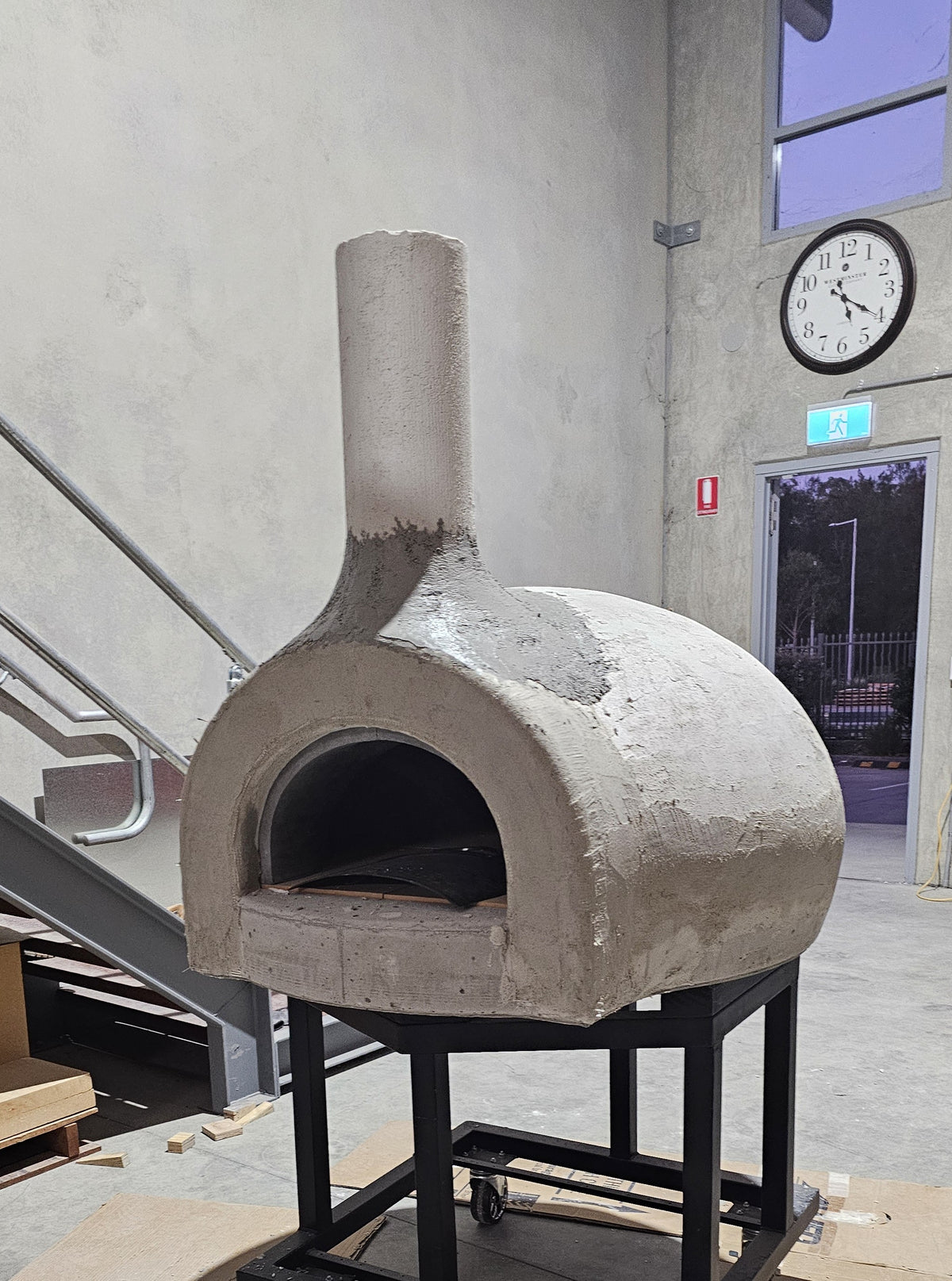

Also included: entrance and chimney components, stainless steel door with thermometer, rain cap, mortars, adhesives, mesh and core finishing materials for assembly. Your final decorative exterior finish is your choice.
Dimensions
Pizza Oven Club specifications
Click the drawing to view it full size.
Plan the build
You’ll also need a few basics.
The specialist oven components, insulation and assembly materials come with the kit. Alongside them, plan for a suitable stand or frame, waterproofing membrane, your chosen paint or decorative finish, normal site preparation and basic DIY tools for the job.

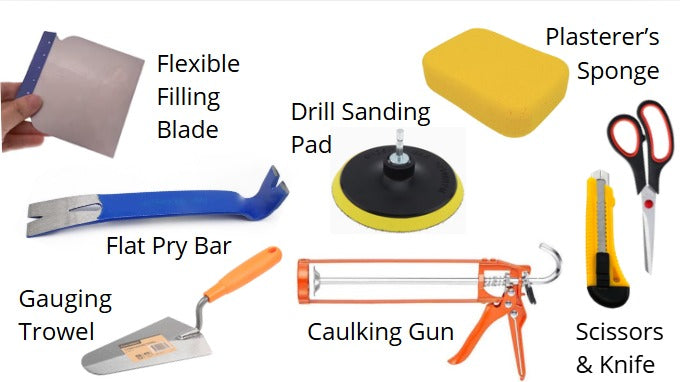

The tools shown are examples of the type of basic hand tools used during assembly and finishing.
The build, simplified
From kit to finished oven in three stages.
Allow 15–20 hours of hands-on assembly for one person, spread over several stages while bonding and finishing materials set.
01
02Assemble and close the oven

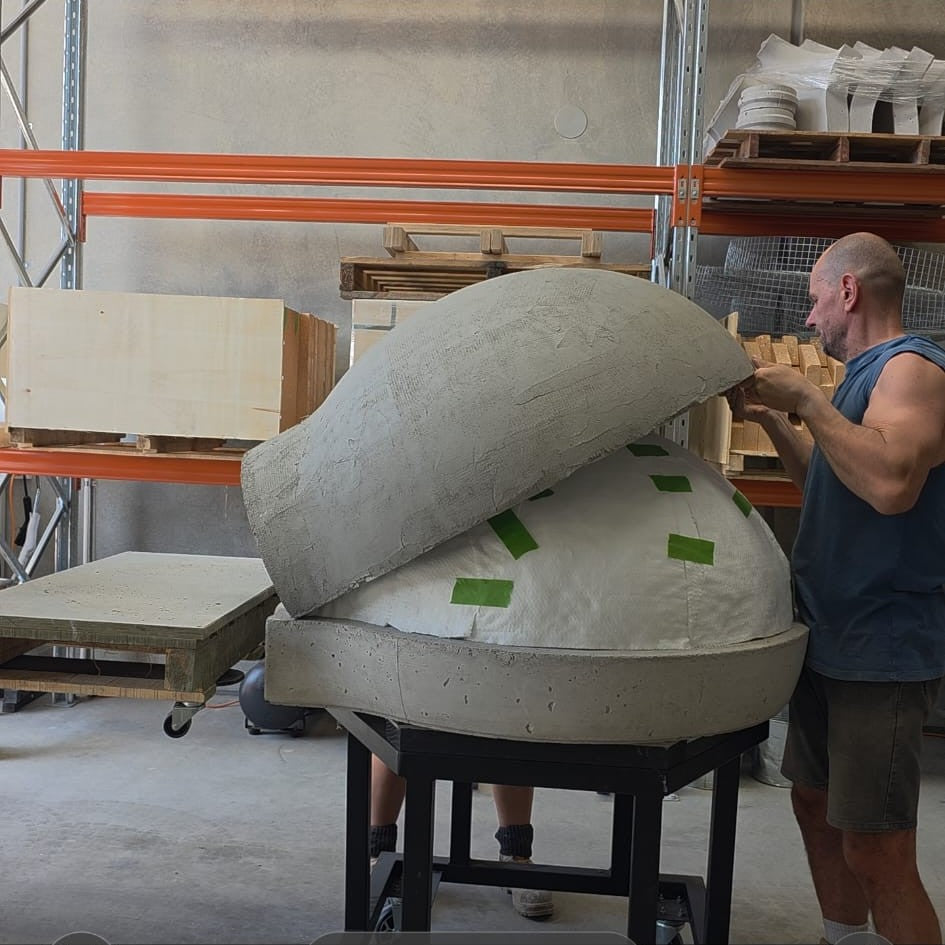

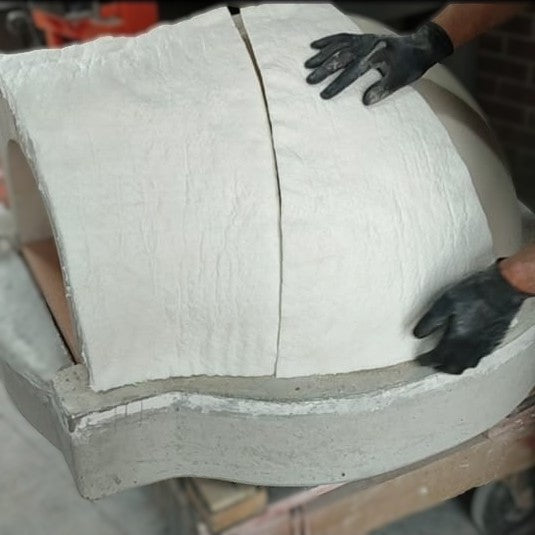

Build the six-piece refractory dome, add the ceramic blanket and fit the pre-shaped outer shell.
03Finish it your way
Complete the entrance and exterior in a finish that suits your outdoor kitchen, garden or entertaining area.

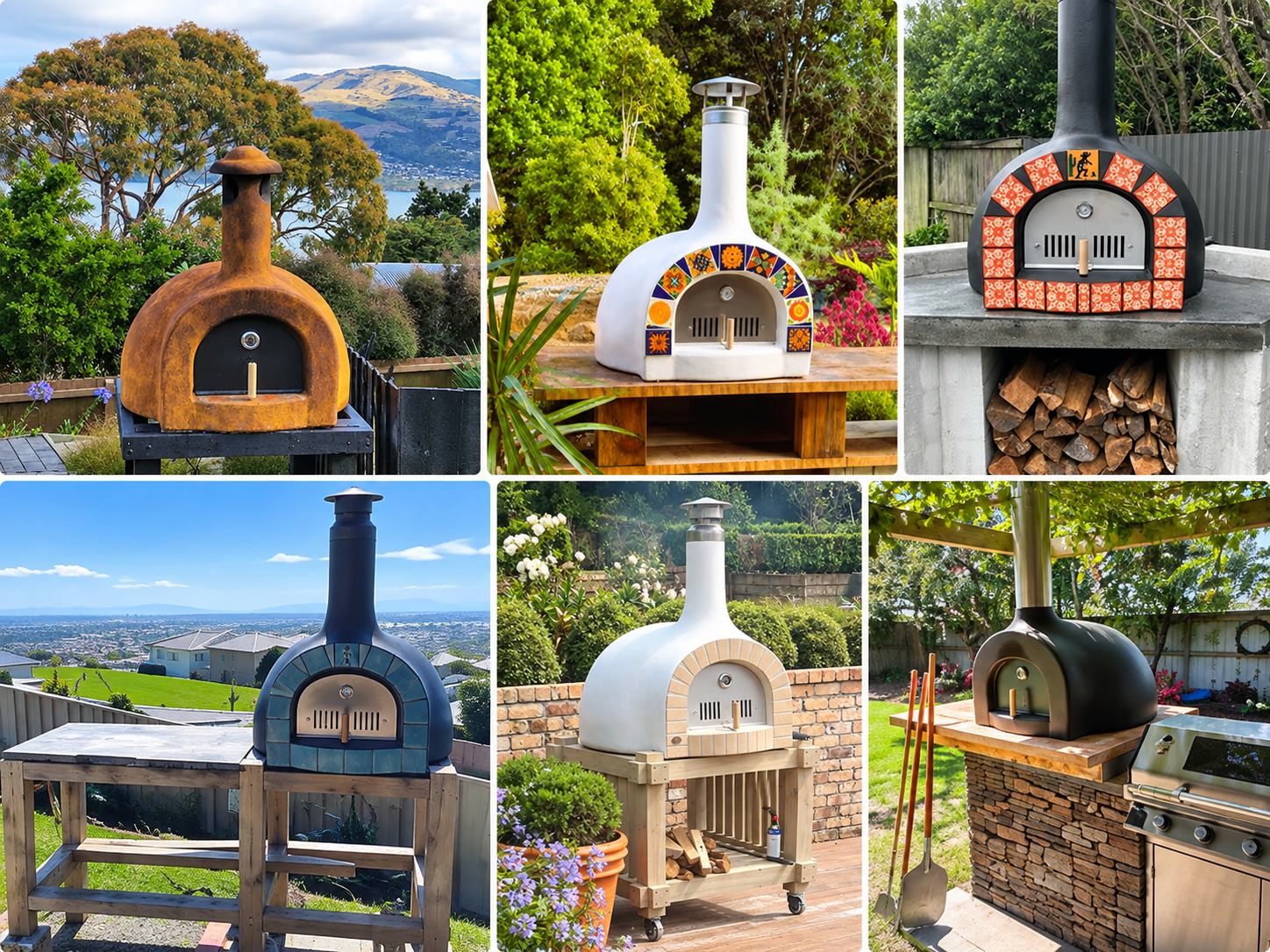

Real customer installations from our New Zealand business, Kiwi Pizza Oven.
Real customer builds
Built by customers. Finished their way.
“The DIY pizza oven kit was interesting and easy to put together, and the whole kit is very cleverly designed — everything fit together really well, and the instructions were clear and straightforward.”
Reviews and customer builds shown here are from our New Zealand business, Kiwi Pizza Oven.
Read all Google reviewsOnce it’s built
More than pizza.
Start with pizza, then use the retained heat for bread, roasting and up to 18 hours of slow cooking from one firing.
Pizza first
Cook at high heat while the oven and cooking floor are fully fired.
Then bake and roast
Use the falling temperature and stored heat for bread, roasting and slower cooking.
Make it part of the gathering
The finished oven becomes a place to cook, eat and spend time together outdoors.
Cooking times and heat retention vary with firing, wood, weather and how the oven is used.
Made here. Supported here.

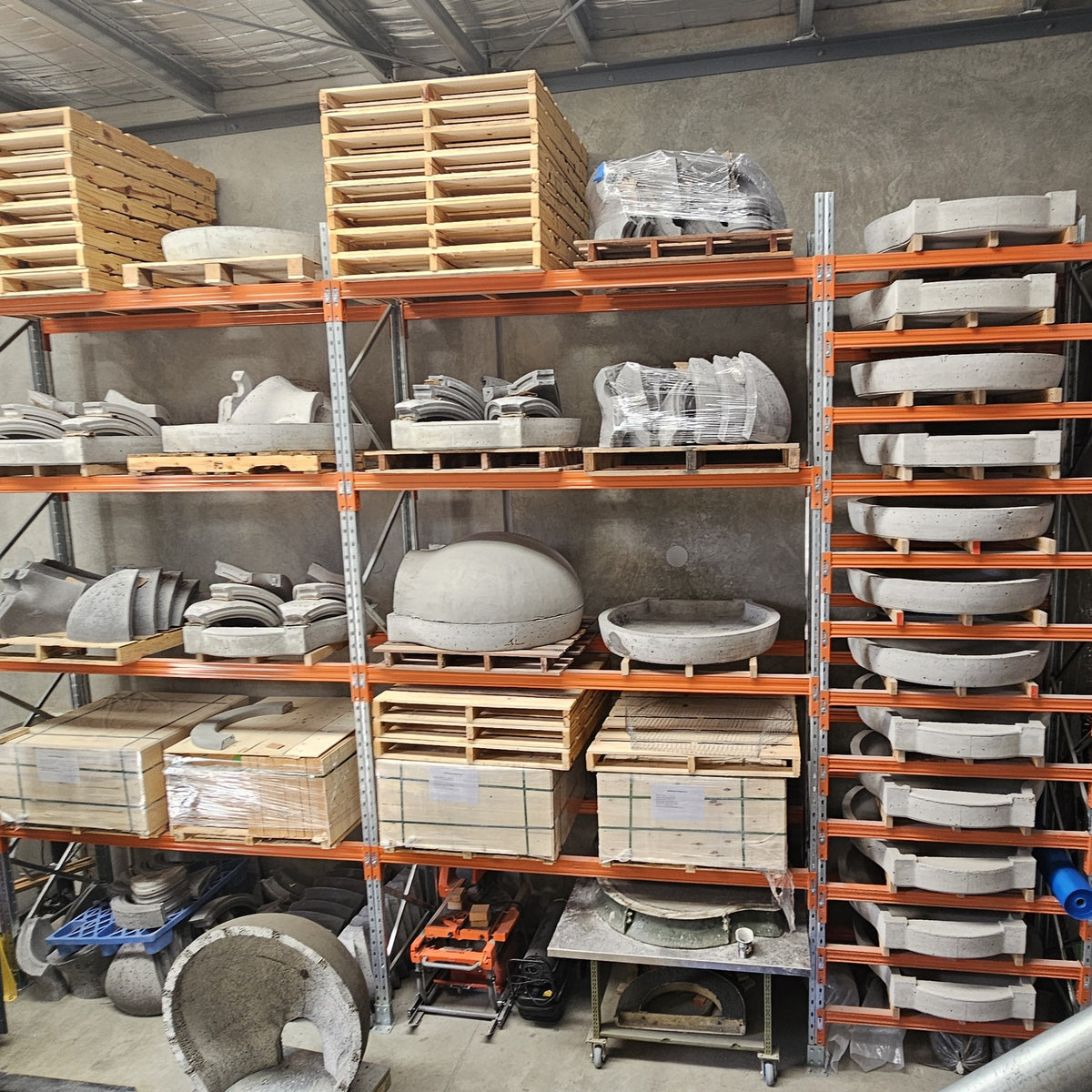

We cast and prepare the main oven components in our Landsborough workshop on the Sunshine Coast.
Collection is available from the workshop. Australia-wide freight is available by quote.
For build or technical questions, you can speak directly with Paweł, who designed the oven and works with its components every day.
